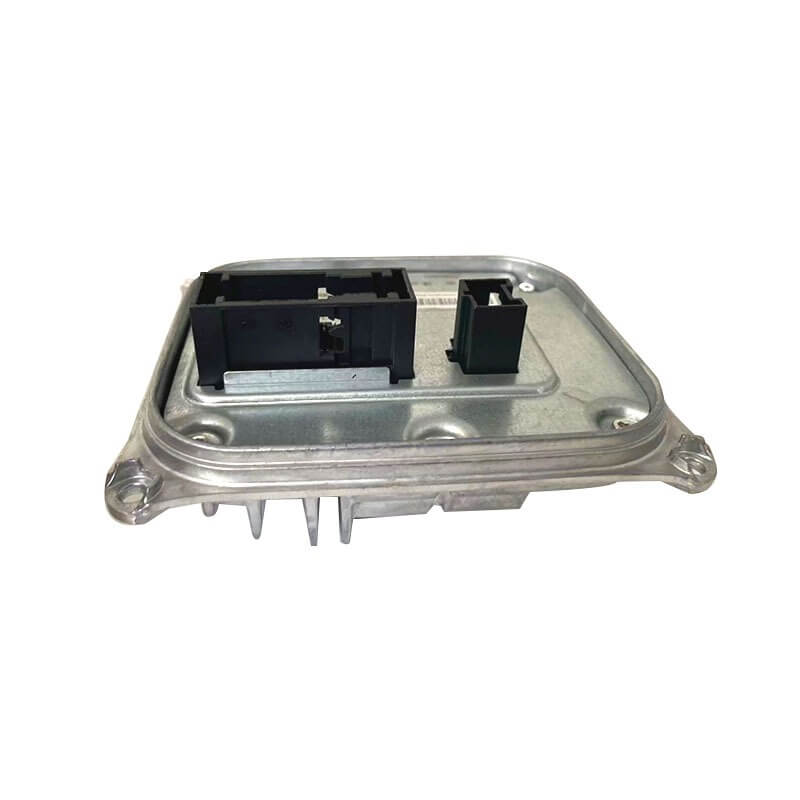

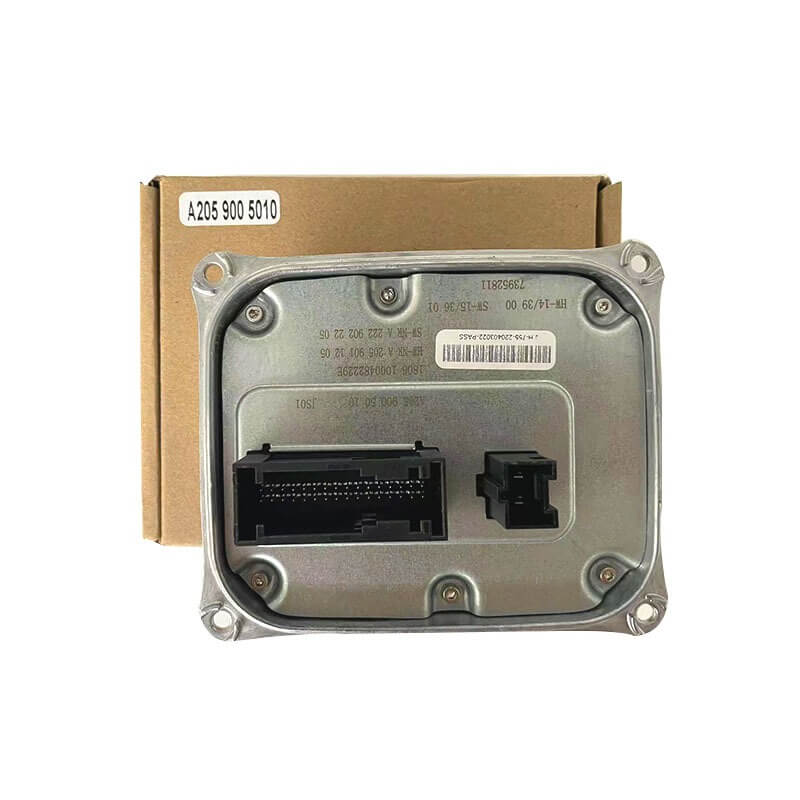

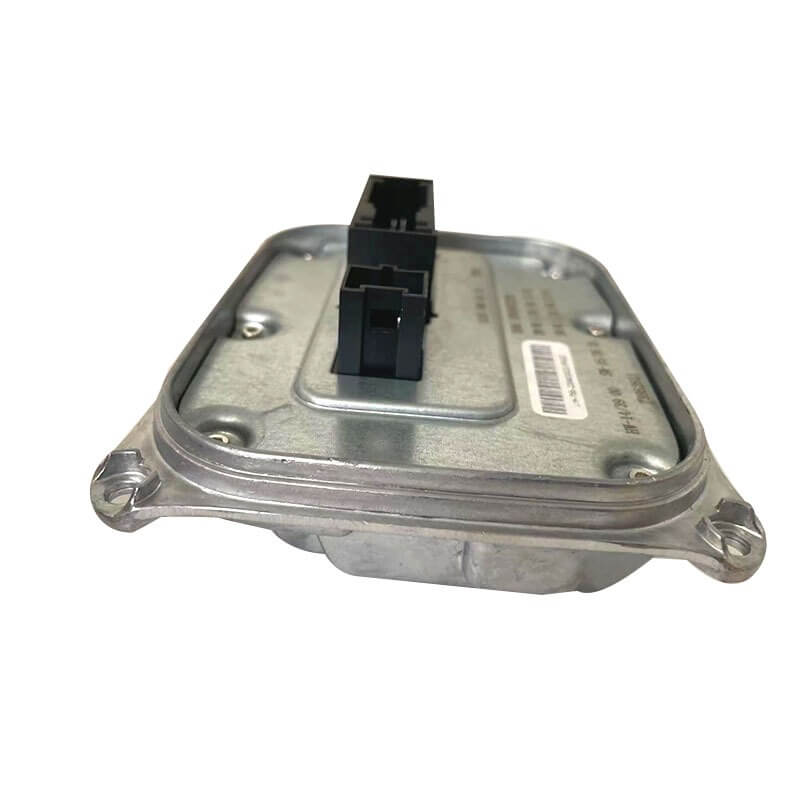

MOTOR10 headlight LED module for Mercedes C-Class W205 A2059005010, A2059006805, 73613909

Replace the LED headlight module for Mercedes with a new, 100% compatible one

Imagine evening falling as you pull away smoothly down the road, when the dashboard of your W205 C-Class suddenly shows an annoying message: "Check Left/Right Headlamp". Often the cause is not the bulb itself, but the LED module that powers and controls the dipped beam and the DRL light signature. This LED headlight module was designed precisely to bring the original Mercedes lighting system back to life, with no compromises and no modifications.

Confirmed compatibility

• Mercedes‑Benz C‑Class W205 Saloon, T‑Model, Coupe, Cabrio (2014‑2021)
• Works on both pre‑facelift and facelift versions with LED High Performance headlights
• Accepted OE codes: A2059005010, A2059006805 (internal reference 73613909)

Reasons to choose this module

• Plug & play – fits in the original position with the same Torx screws, with no additional coding
• OEM chipset – ensures constant light output and overheating protection

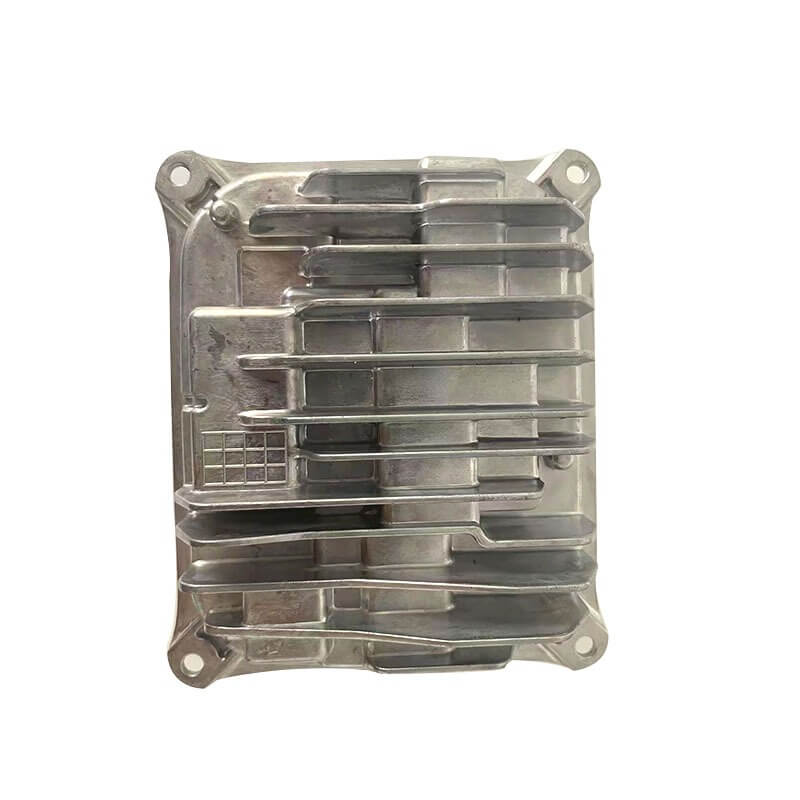

• Aluminium housing – acts as a passive heat sink, dissipating heat and extending the life of the LEDs
• IP67 protection – high resistance to water and dust, ideal for harsh weather conditions

Immediate benefits

1. Clear headlight-related dashboard errors and restore your DRL lights to roadworthy condition.
2. Save money – replace only the module, not the whole headlight, avoiding a huge bill.
3. Superior visibility – optimal light output, approved to Mercedes standards.

Quick installation in 3 steps

1. Remove the rear cover of the headlight and disconnect the plugs of the old module.
2. Remove the three Torx T20 screws and take out the burnt-out unit.
3. Fit the new module, connect the wiring and secure the cover. Test the lights – the error message disappears instantly.

Whether you have noticed frequent flickering of the dipped beam or simply want to prevent an imminent failure, the Mercedes W205 LED headlight module with OE code A2059005010 / A2059006805 is the safe, budget-friendly solution. Enjoy the unmistakable design of your C‑Class headlights again, on any road and in any light conditions.

Compatibility:

To check compatibility, use the list below or the product's OE code:

• Hardware and software codes:
  HW-NR A2059013103
  SW-NR A2229024107

• Mercedes Benz codes:
  A2059005010
  A205 900 50 10

• Continental codes:
  A2C73613909
  73613909

• Other compatible codes:
  MA2059004230 A2C73952814 A2C7414950
  A2059006805 A2C73952811
  A2229000015 A2C73952414
  A2229008005
  MA222900800580
  A2C73952411
  A2229004405
  A2C7361300
  HW-NR A2229012202
  SW-NR A2229029404

• C Class C205 Coupe 2014, 2015, 2016, 2017
• C Class A205 Convertible Cabriolet 2014, 2015, 2016, 2017
• C Class S205 T-Model Estate Touring 2014, 2015, 2016, 2017
• C Class W205 Saloon Sedan 2014, 2015, 2016, 2017
• C180d C200d C220d C250d diesel BlueTEC 4MATIC
• C300 C450 C350 C45 AMG C63 AMG petrol gasoline
• C350e Plug In Hybrid

The module is factory pre-coded for the C Class W205 – NOT COMPATIBLE WITH E CLASS AND S CLASS
